CONTADOR DE PARTICULAS CONTAMINANTES HIAC PODS

CONTADOR DE PARTICULAS CONTAMINANTES HIAC PODS

Cantidad disponible: 1

Estado de México, México

oLlamar (55) 5023-3000

Descripción

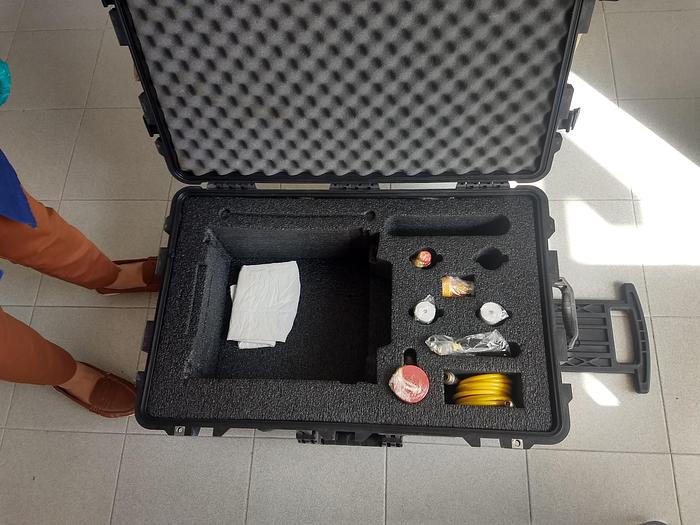

Contador de partículas contaminantes, marca HIAC, modelo PODS año 2015 ubicado en el Estado de México, México. Disponibilidad inmediata.

Especificaciones

FabricanteHIAC
ModeloPODS
Año2015
CondiciónUsado
Número de StockP77805790170001
Dimensions17.8 x 33.0 x 35.6 cm (7 x 12.5 x 14 in.) (D x W x H)
Weight9.5 kg (21 lb)
Size channelsISO-MTD 4, 4.6, 6, 9.8, 14, 21.2, 38, 68 μm ACFTD ~1, 2, 5, 10, 15, 25, 50, 100 μm
Flow rate15 to 50 ml/min (automatic/manual)
Light sourceLaser diode
CalibrationISO MTD (based on ISO 11171) Full ISO 11171 Optional
Counting efficiencyJIS B9925:1997
Concentration limit20,000 particles per ml @ 5% coincidence loss (per ISO 11171) 30,000 particles/ml @ 10% coincidence
Sample volume3 runs (averaged) of 5, 10 or 20 ml/run (programmable)
Fluid temperature range0 to 90 °C at 25 °C ambient (32 to 194 °F at 77 °F)
Measured fluid temperature0 to 100 °C, ±0.5 °C (32 to 212 °F, ±0.9 °F)
Viscosity range10 to 424 cSt (59 to 2000 SUS) For viscosity measurement, viscosity range is 10 to 424 cSt ±20% at value.
Cleanliness classificationISO 4406-1991, ISO 4406-1999, NAS 1638, MILSTD-1246C, SAE AS 4059, NAVAIR 01-1A-1
Data storage500 sample records
Input/output serial communicationRS232
Altitude2000 m (6561.7 feet)
CertificationsCE
Purge volume15 to 30 ml (automatic/manual) Programmable
CartridgeCO2, replaceable, rechargeable
Operating time60 samples (120 ml sample bottle) Programmable, hold time and sample number
Shop air60 to 110 psi (4.1 to 7.6 bar) clean, dry
Fluid pressure40 to 6000 psi (2.75 to 413.7 bar)
DC input24 VDC, 2 A maximum
AC adapterUniversal 100–240 VAC, 50–60 Hz, 60 W
Rechargeable batteryNickel-metal hydride
Operatingtime100 samples or 4 hours continuous
Recharge time2.5 hours
Operating environment0 to 55 °C (32 to 131 °F), 5 to 95% relative humidity, non-condensing
Storage-40 to 70 °C (-40 to 158 °F), up to 98% relative humidity, non-condensing
Type:Portable Industrial Particle Counter
WarrantyNo warranty
